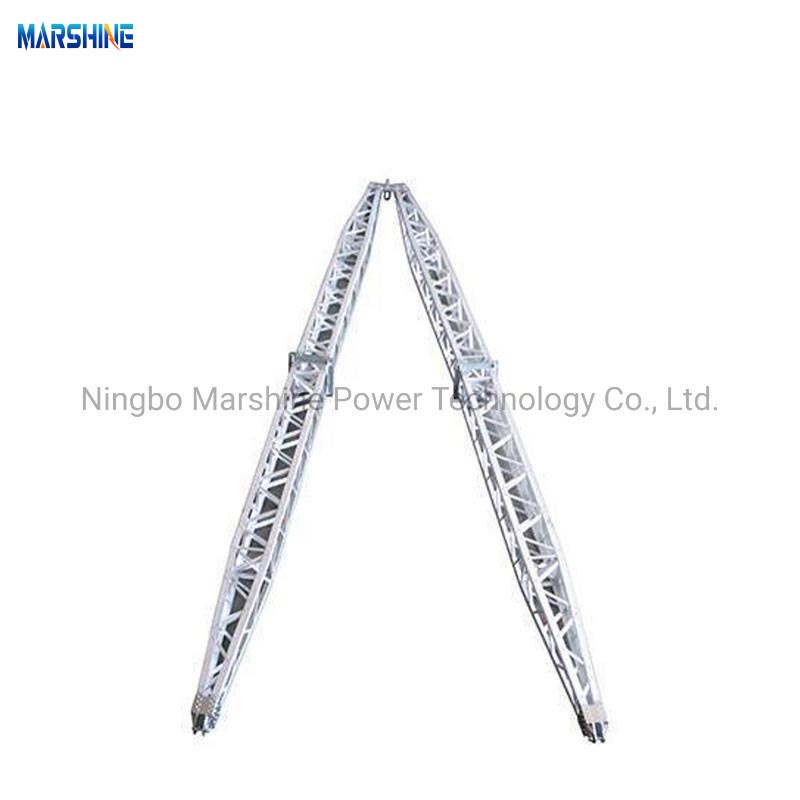

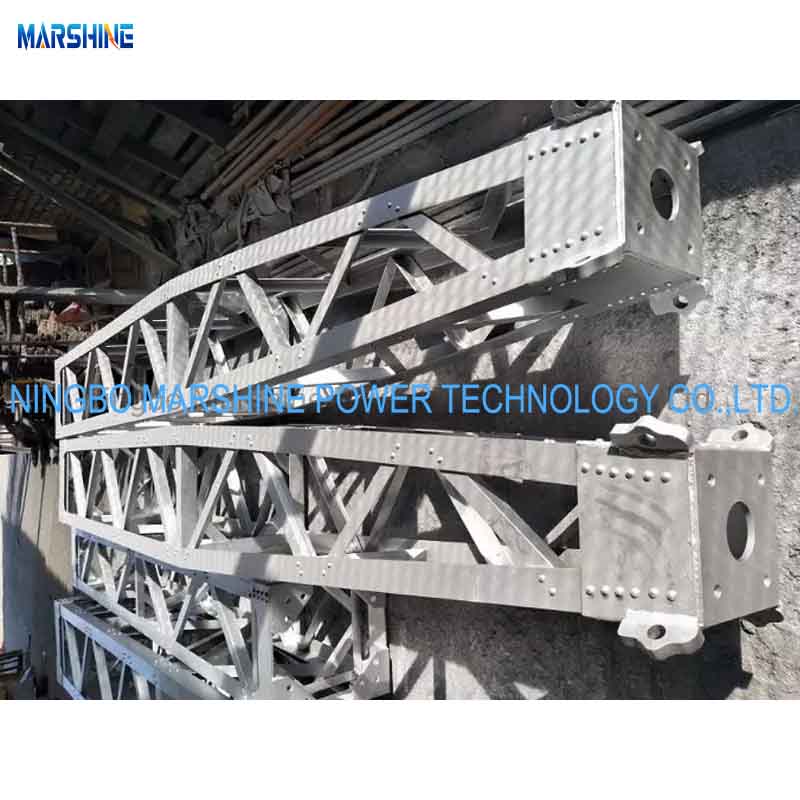

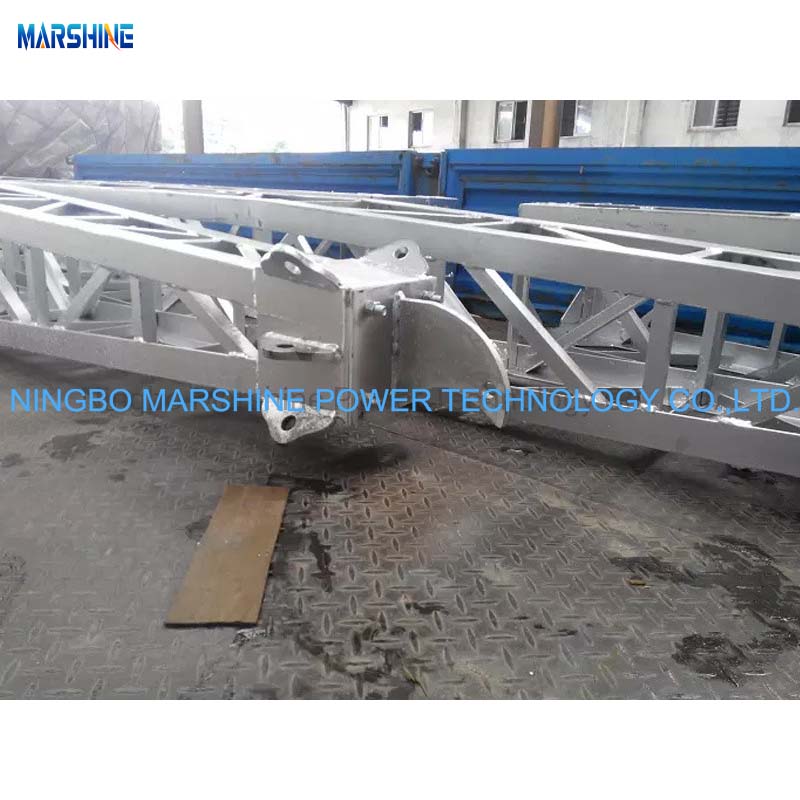

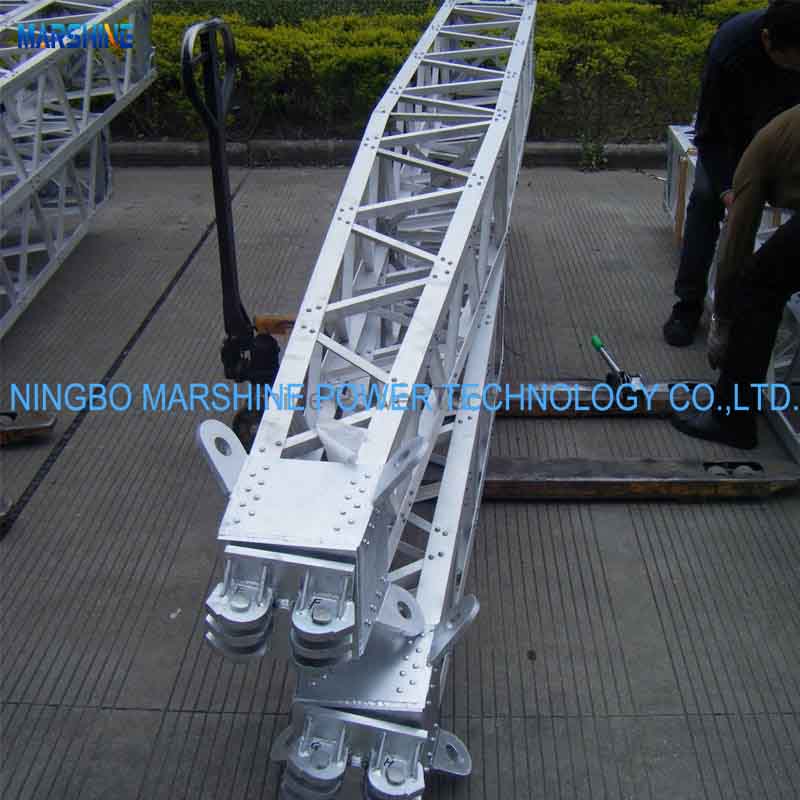

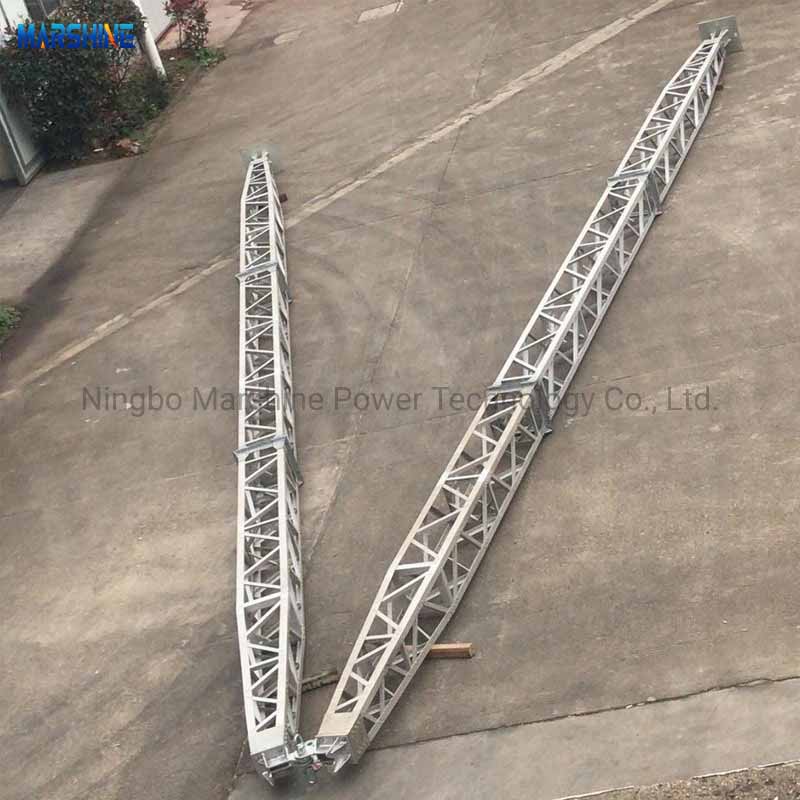

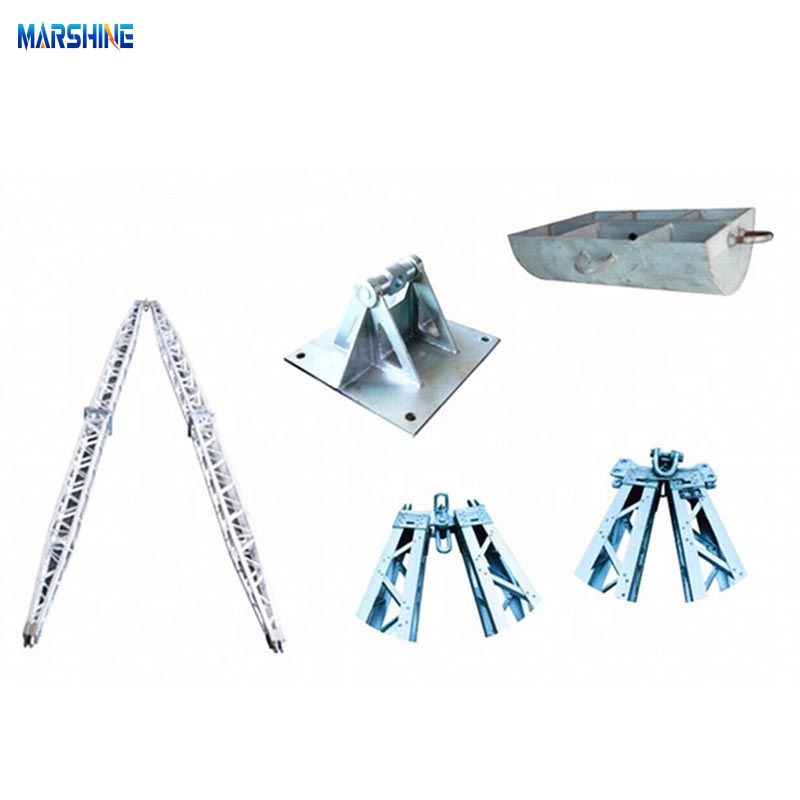

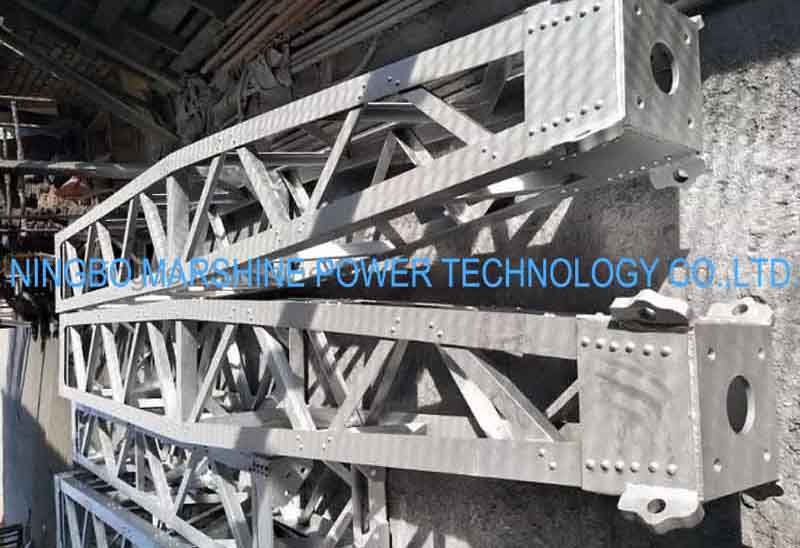

The MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is a specialized tool for vertical lifting operations in the transmission line constructions, is suitable for the pole installation and tower assembly. This pole features a lightweight yet durable A-shape design that can provides good stability for the construction works, and also ensures its load-bearing capacity. Made from the high-tensile aluminum alloy, it is ideal for the field operations where the portability, safety and reliability are demanded.
Product Parameter
| Itemnumber | Model | Length(m) | Base stroke(m) | Allowablevertical load(KN) | Cross section(m) | Weight(kg/m) |
| 03361 | LBR250-8 | 8 | 2.8 | 72 | 200 | 10.5 |
| 03362 | LBR250-9 | 9 | 3.1 | 56 | ||
| 03363 | LBR250-10 | 10 | 3.5 | 45 | ||
| 03364 | LBR250-11 | 11 | 3.8 | 38 | ||
| 03365 | LBR250-12 | 12 | 4.2 | 32 | ||
| 03366 | LBR250-13 | 13 | 4.5 | 27 | ||
| 03371 | LBR300-8 | 8 | 2.8 | 100 | 300 | 11 |
| 03372 | LBR300-9 | 9 | 3.1 | 87 | ||
| 03373 | LBR300-10 | 10 | 3.5 | 70 | ||
| 03374 | LBR300-11 | 11 | 3.8 | 56 | ||
| 03375 | LBR300-12 | 12 | 4.2 | 47 | ||
| 03376 | LBR300-13 | 13 | 4.5 | 40 | ||
| 03377 | LBR300-14 | 14 | 5.2 | 35 | ||
| 03378 | LBR300-15 | 15 | 5.6 | 31 | ||
| 03379 | LBR300-16 | 16 | 2.8 | 26 | ||
| 03381 | LBR350-8 | 8 | 2.8 | 120 | 350 | 13.5 |
| 03382 | LBR350-9 | 9 | 3.1 | 105 | ||
| 03383 | LBR350-10 | 10 | 3.5 | 94 | ||
| 03384 | LBR350-11 | 11 | 3.8 | 78 | ||
| 03385 | LBR350-12 | 12 | 4.2 | 65 | ||
| 03386 | LBR350-13 | 13 | 4.5 | 58 | ||
| 03387 | LBR350-14 | 14 | 4.9 | 46 | ||
| 03388 | LBR350-15 | 15 | 5.2 | 42 | ||
| 03389 | LBR350-16 | 16 | 5.6 | 37 | ||
| 03391 | LBR400-11A | 11 | 3.8 | 98 | 400 | 14.5 |
| 03392 | LBR400-12A | 12 | 4.2 | 85 | ||
| 03393 | LBR400-13A | 13 | 4.5 | 75 | ||
| 03394 | LBR400-14A | 14 | 19 | 64 | ||
| 03395 | LBR400-15A | 15 | 5.2 | 56 | ||
| 03396 | LBR400-16A | 16 | 5.6 | 48 | ||
| 03397 | LBR400-17A | 17 | 5.9 | 44 | ||
| 03398 | LBR400-18A | 18 | 6.3 | 38 | ||
| 03401 | LBR400-11B | 11 | 3.8 | 147 | 400 | 16.5 |
| 03402 | LBR400-12B | 12 | 4.2 | 129 | ||
| 03403 | LBR400-13B | 13 | 4.5 | 113 | ||
| 03404 | LBR400-14B | 14 | 4.9 | 98 | ||
| 03405 | LBR400-15B | 15 | 5.2 | 86 | ||
| 03406 | LBR400-16B | 16 | 5.6 | 75 | ||
| 03407 | LBR400-17B | 17 | 5.9 | 69 | ||
| 03408 | LBR400-18B | 18 | 6.3 | 60 |
Product Feature
Our MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is a stable lifting tools that can provides the outstanding load-bearing capacity maximum to 149KN, and at the same time, its aluminum alloy material reduces the weight well, make it easier to transport and handle with. The A shape structure of our pole enhances the structural stability while reducing wind resistance, ideal for outdoor work, and is easier to assemble and disassemble, interchange the parts, or adjust the working height flexibly. Can compatible with a variety of pulleys, winches and lifting accessories, it is able to apply on a wide range of applications. Been treated with the oil-paint coating for its durability, make it can function well in the harsh working conditions.
Product Application
The MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole is ideal for the tower construction and line maintenance works, it can function well in the lifting operations in mountainous, remote or restricted-access work sites, installation of wind turbine nacelles and blades, erection of telecommunication towers in mountainous areas, or deal with the temporary lifting support for live line projects. In addition, it is also able to handle the lifting of substation equipment (transformers, circuit breakers) or the suspension rigging of the bridges.
Product Details
The lightweight design and the high strength of our MARSHINE Aluminum Alloy A-Shape Lattice Gin Pole make it a good ideal for the modern utility and construction teams.
Original Country:China.
Leading Time:20-30days.
Certification:CE,ISO9001.
Warranty:1year.
